Regular price
$3,195.00
Sale price
$3,195.00
Unit price
per
Shipping calculated at checkout.

Product Description

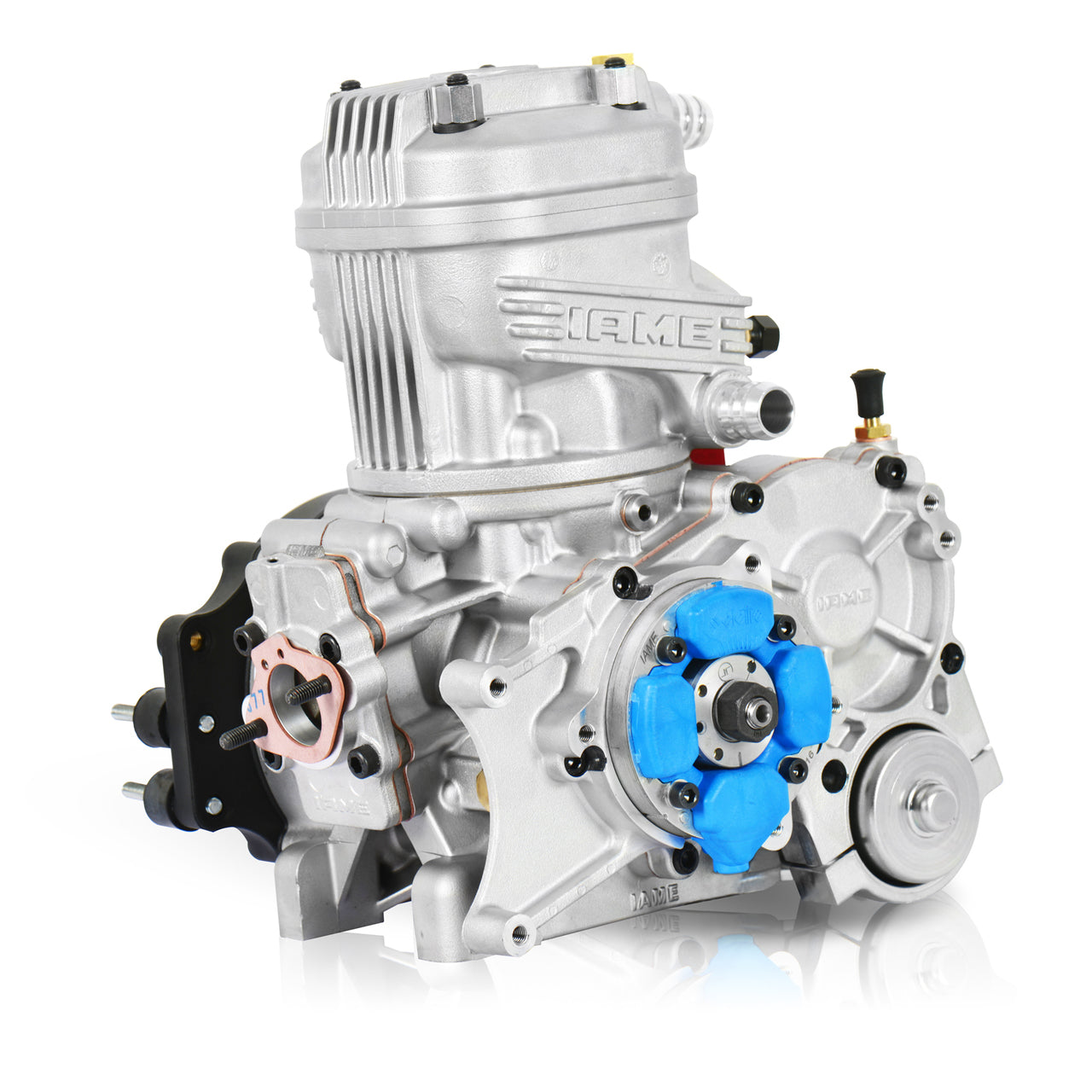

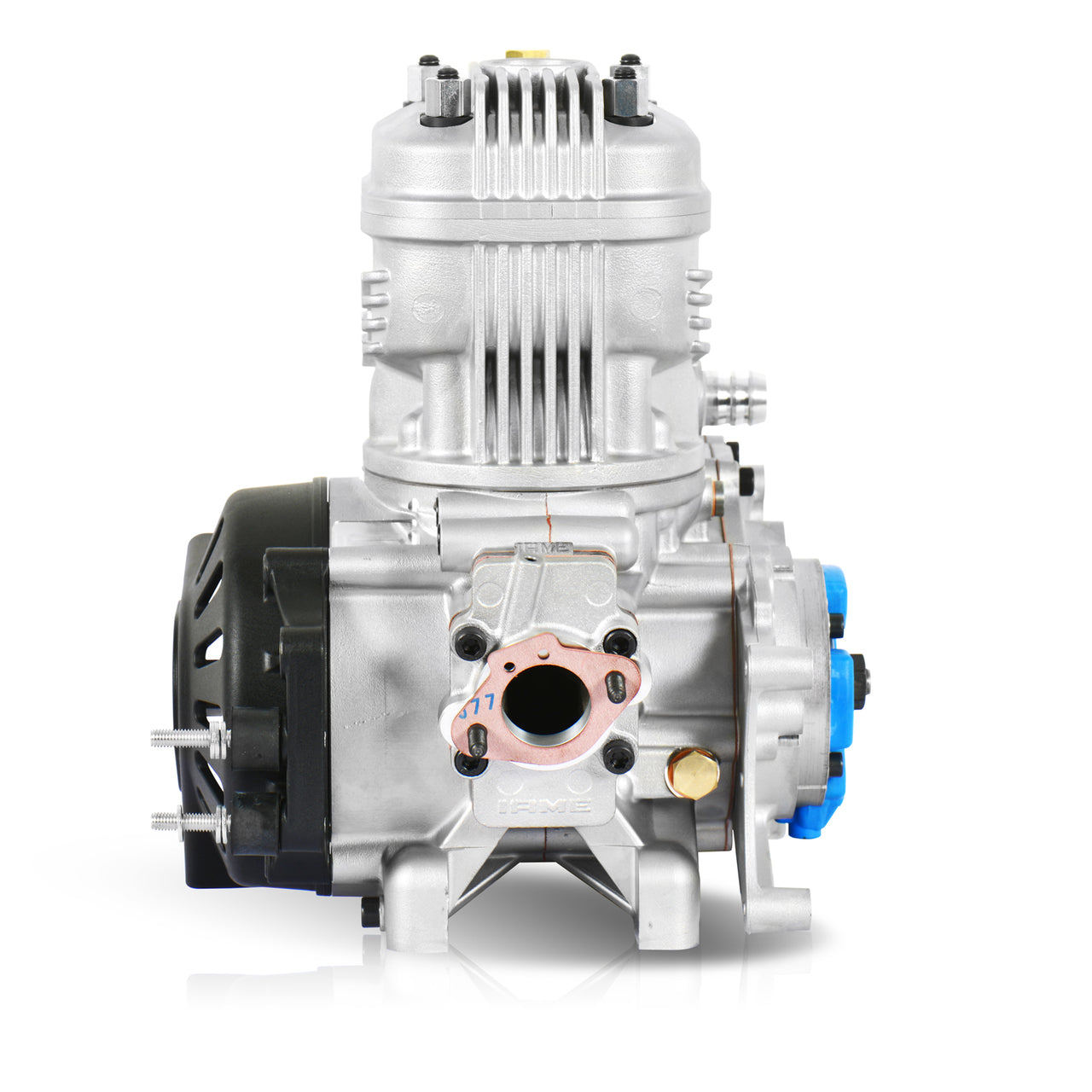

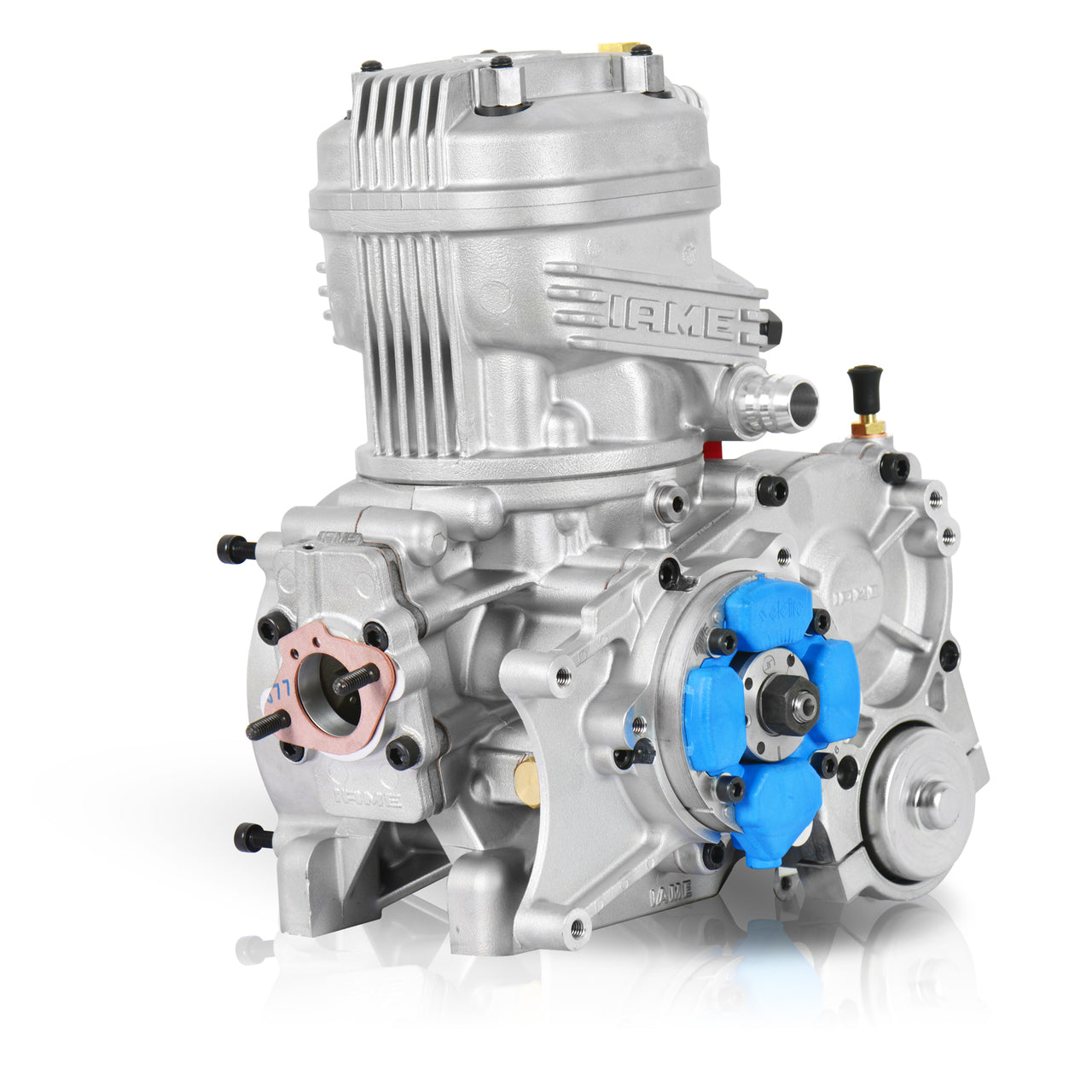

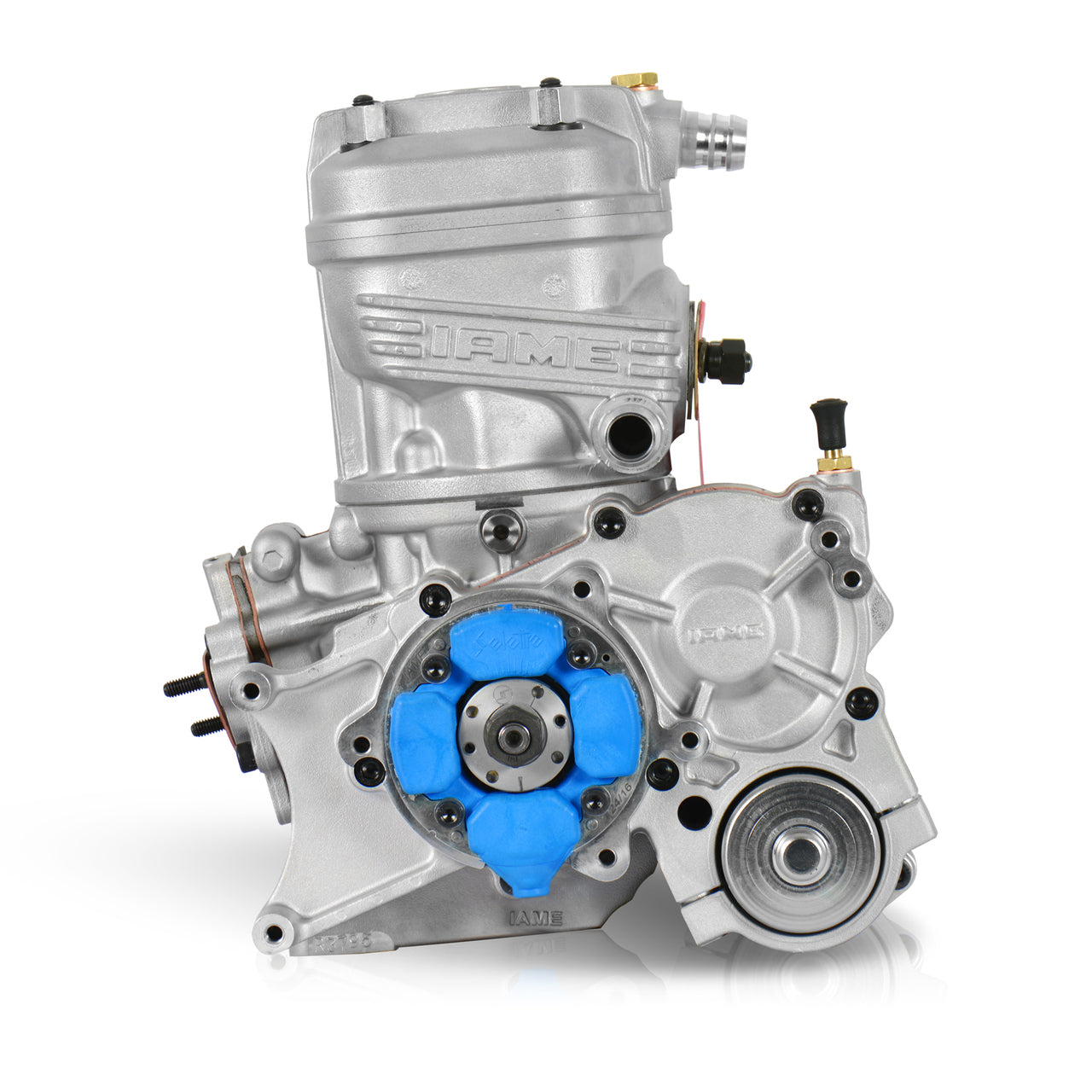

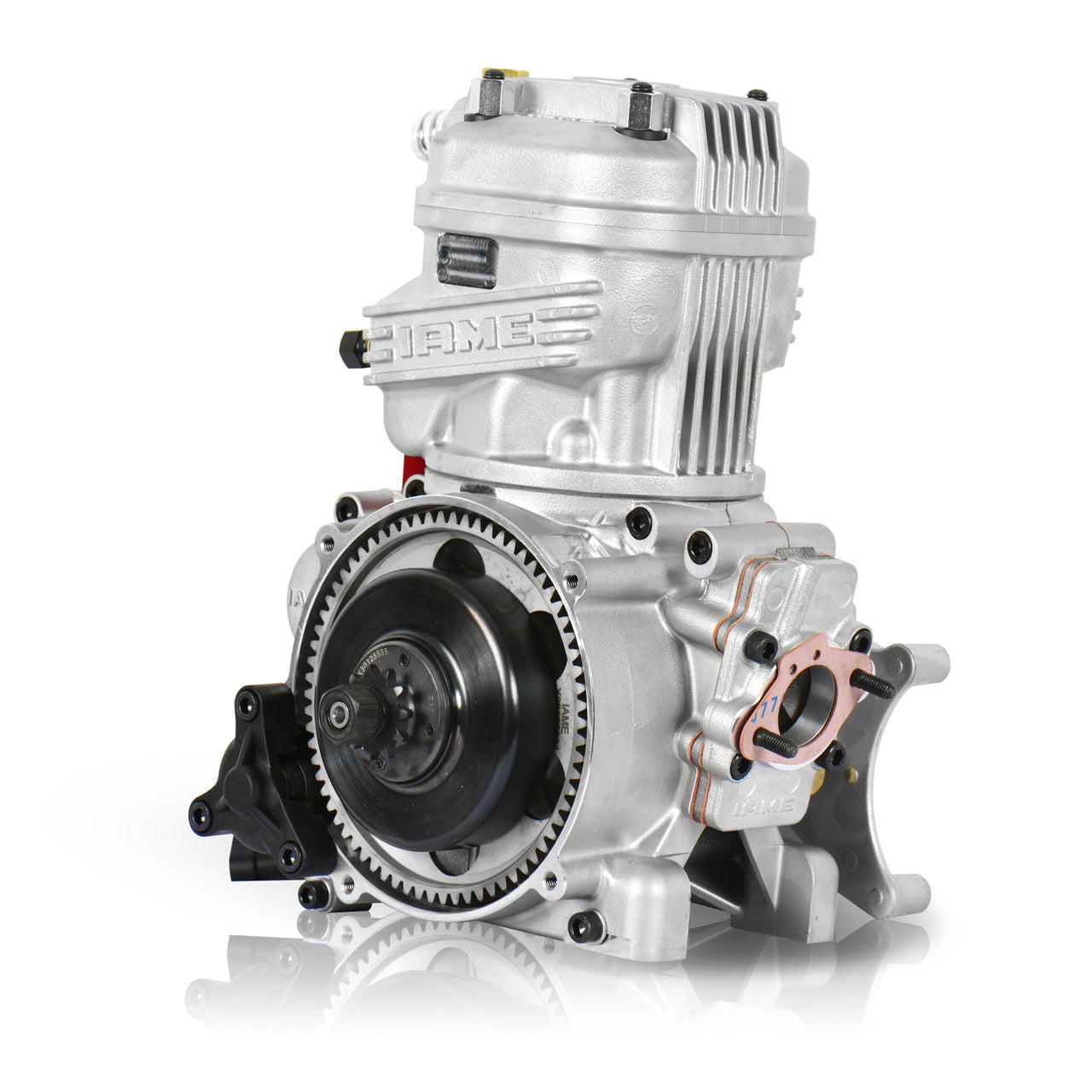

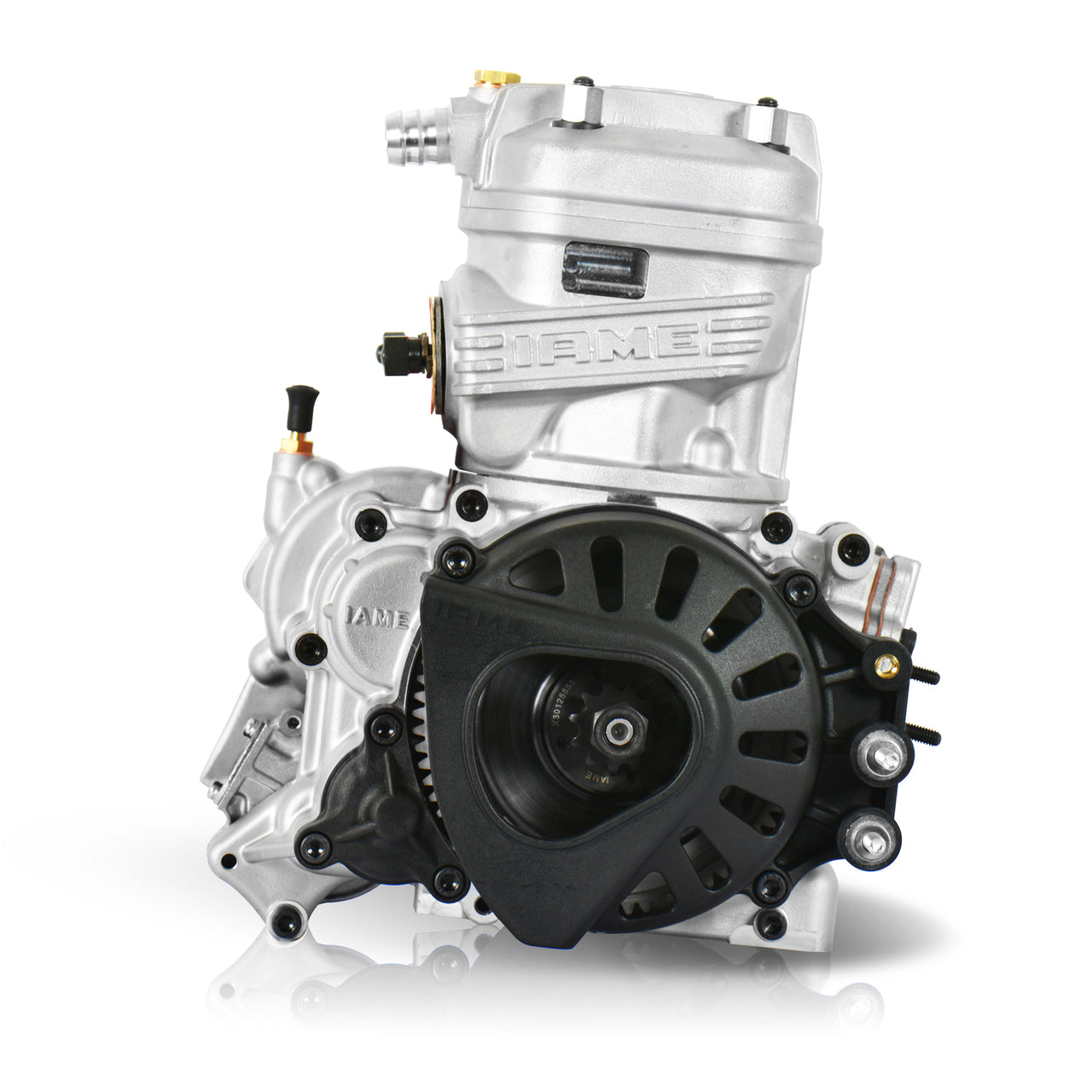

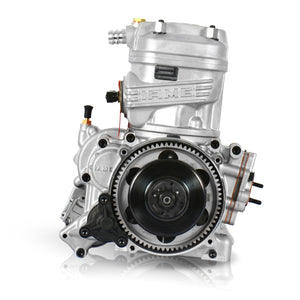

IAME X30-One of the most popular 125cc two stroke water cooled electric start single speed racing engines in America! Bolt this engine onto an OTK Chassis (Tony Kart, Kosmic, FA or Exprit) and go win races!

The Iame X30 has been designed with the specific aim to provide Karting drivers with an innovative yet faithful to tradition engine. The IAME X30 offers modern features, such as the electric starter, the balance shaft and the water cooling, yet preserving traditional Karting engines aspects, such as the diaphragm carburetor and no power valve. The result is an engine that offers a pure Karting driving experience, combined with ease of use and low maintenance.

Available in standard or junior restricted configuration.

Technical Specifications

  • Engine Type: single cylinder – 2 stroke
  • Bore: Ø 54.00 mm
  • Max Bore: Ø 54.28 mm
  • Stroke: 54.00 mm
  • Displacement: 123.67cc (125cc max)
  • Carb. Model: Tryton Hobby 27/C (Ø 26mm)
  • Inlet System: reed valve
  • Lubrication: oil mixture 4%
  • Ignition System: digital with battery charger
  • Transmission: dry centrifugal clutch
  • Cooling System: water cooled
  • Starting: on-board electric starter
  • Max Power: 28 Hp (21 Hp ) at 11.750 Rpm
  • Max Torque: 17 Nm (13Nm) at 10.750 Rpm
  • Max RPM Limit: 16.000 Rpm (Rpm limiter)

Engine Package Includes

  • Selettra digital K ignition with pick-up in the stator and generator for battery charging
  • H.T. coil and vibration dampers
  • NGK BR9EG sparkplug and resistive spark plug cap
  • Centrifugal dry clutch group with Z11 detachable sprocket

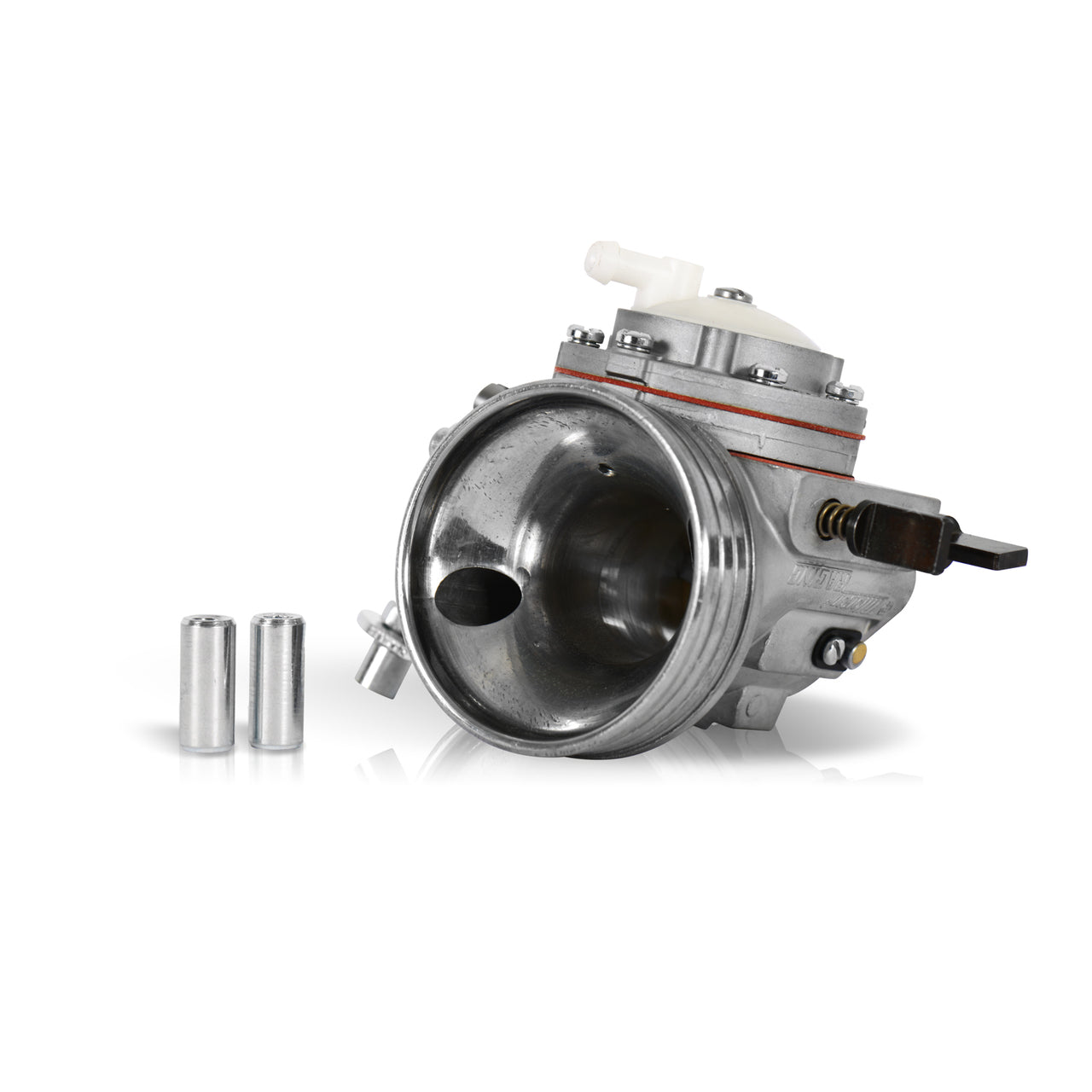

  • TRYTON HB27-C carb. Ø 26 mm

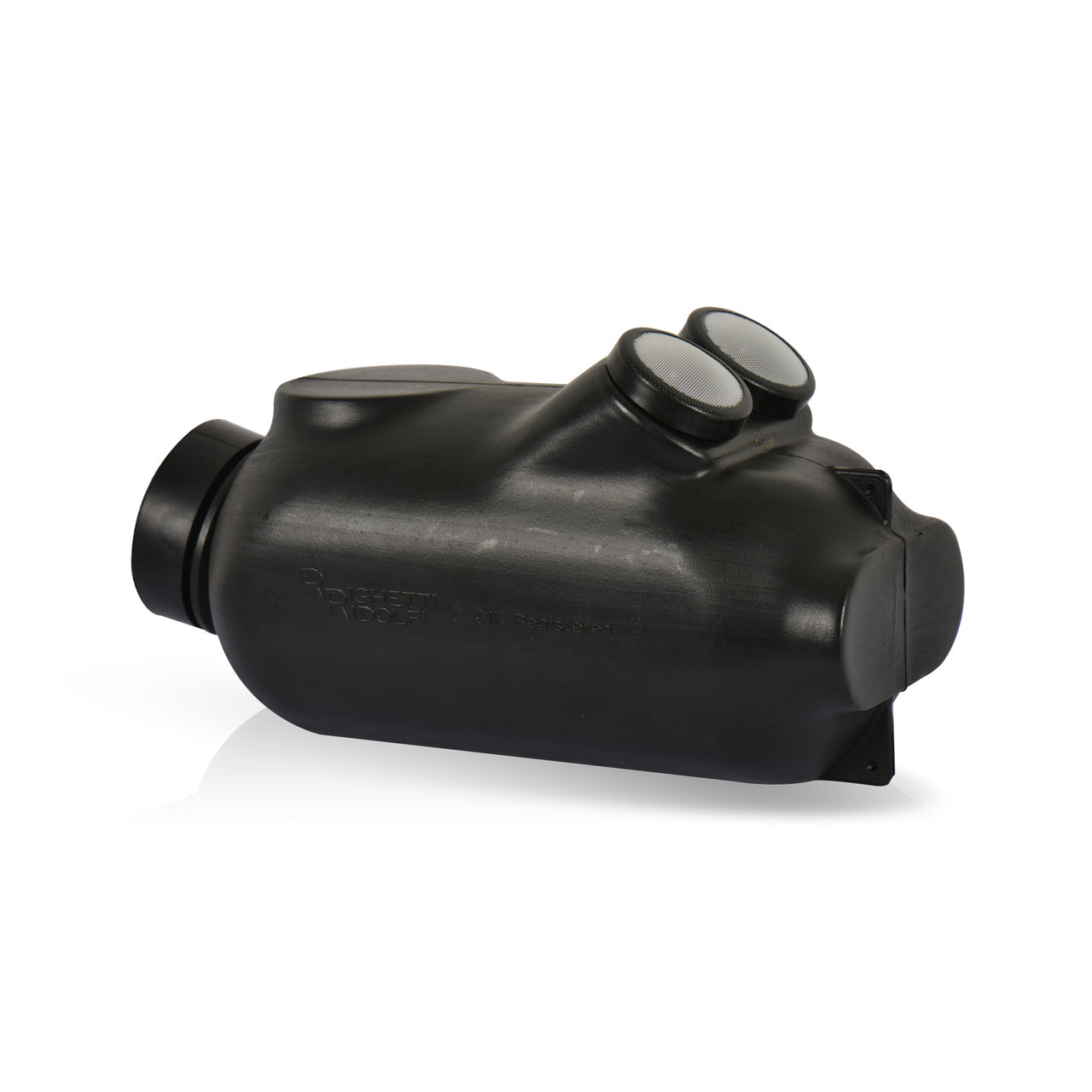

  • Intake silencer with foam air fi lter
  • Flexible hose with silicon sheath and springs

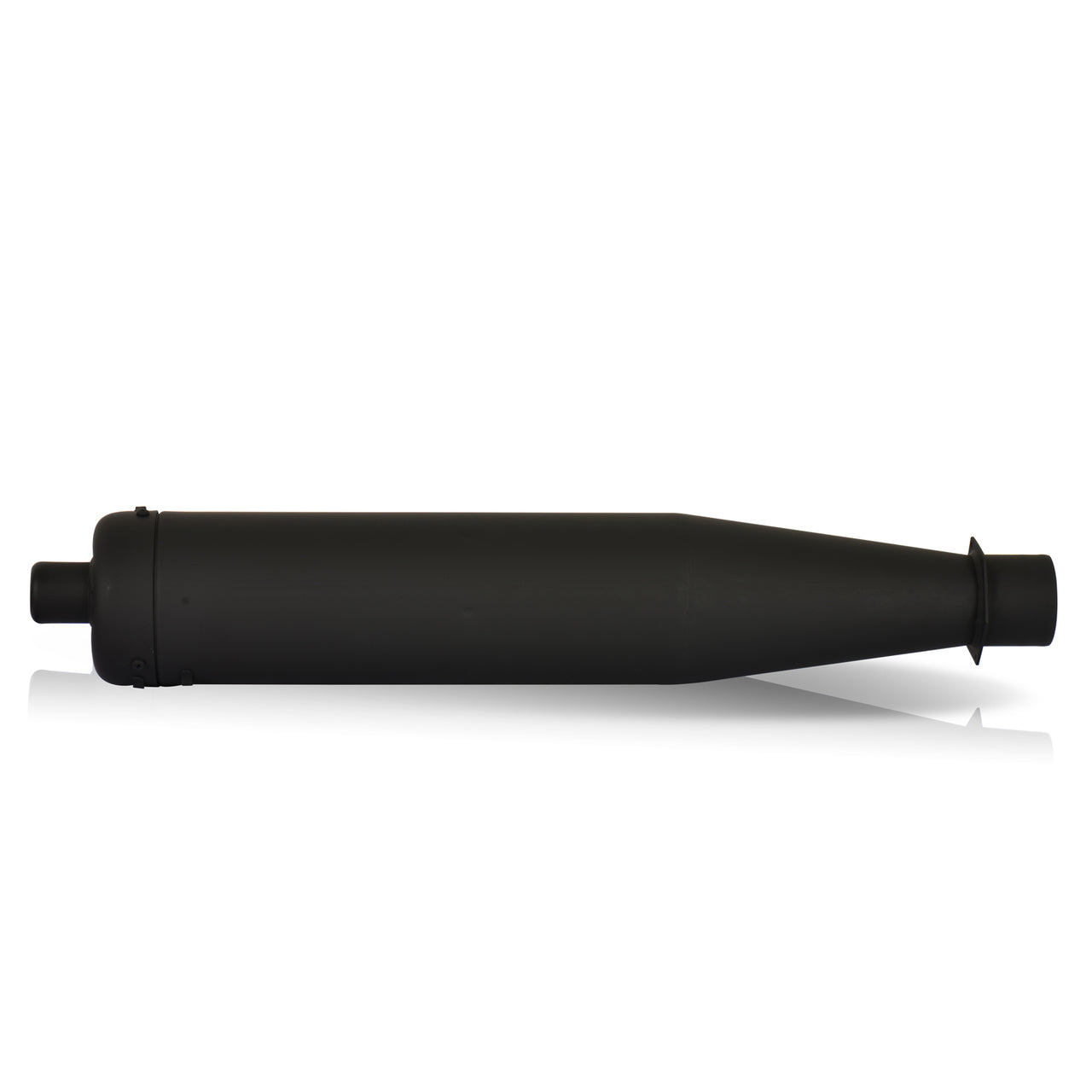

  • Exhaust silencer and exhaust header mod. X30
  • Starter motor external support
  • X30 electronic box “C” model - 16.000 RPM
  • Cables harness with connectors
  • SSR starter relay
  • Starter key assembly
  • Battery support
  • Velcro strap and dampening rubber pads
  • Water pump assembly, water pump support, water pump transmission pulley
  • Water radiator with support
  • Water hoses and clamps
  • Thermostat 50°
